Helix / Match URC.1

Technical data
Control elements 1 x Rotary knob
Cable length 5 Meters
Connector SCP
Dimensions with housing 30,1 x 23 x 42,7 mm /
1.18 x 0.90 x 1.68″

Compatibility
Compatible with all HELIX and MATCH DSP devices with Smart Control Port (SCP)

Scope of delivery
1 x URC.1
1 x Connection cable (5 m / 16.4 ft)
1 x Mounting material

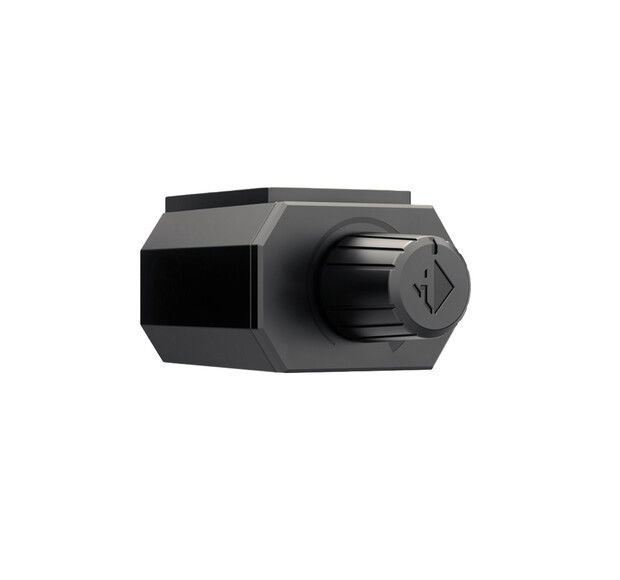

URC.1
The universal cable remote control URC.1 for HELIX and MATCH DSP products with Smart Control Port (SCP) gives you full control over the volume level of the subwoofer or a specific signal source, such as an optionally available Bluetooth module. The volume level to be controlled is defined in the DSP PC-Tool software.
Thanks to the multifunctional housing, quick and uncomplicated mounting is possible both on the top and bottom. Alternatively, the housing can be easily removed to enable a discreet integration into the vehicle interior – for example behind the vehicle trim.

Features
Optimum volume control – Configurable as subwoofer, master or Aux volume
Multifunctional, removeable housing – enables mounting on the bottom or top side as well as behind panels
Compatible with all HELIX and MATCH DSP devices with Smart Control Port (SCP)
Connection cable 5 m / 16.4 ft
